TD 500 Tire Changing Machine-Balancer Combo

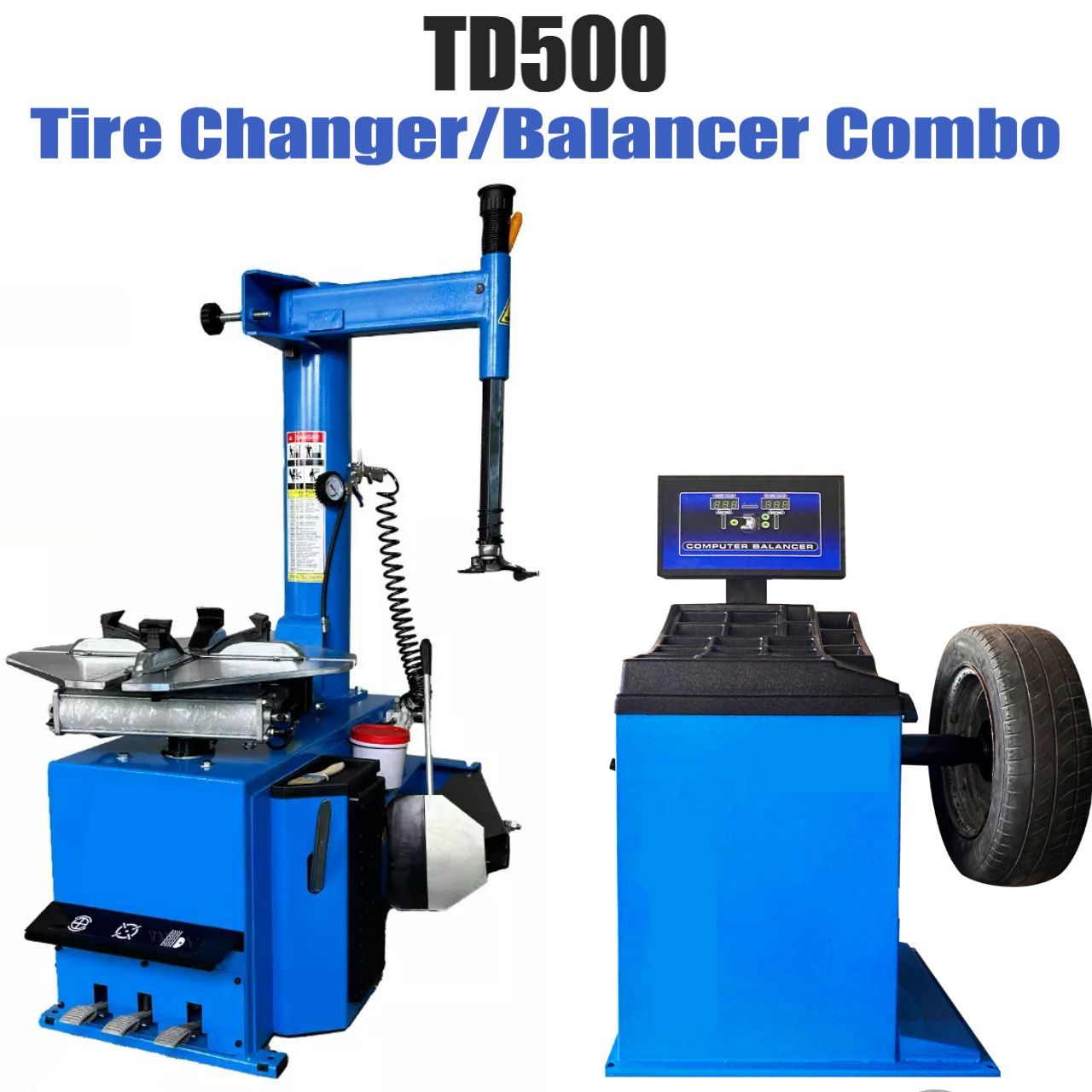

TD500 Tire Changing Machine Balancer Combo

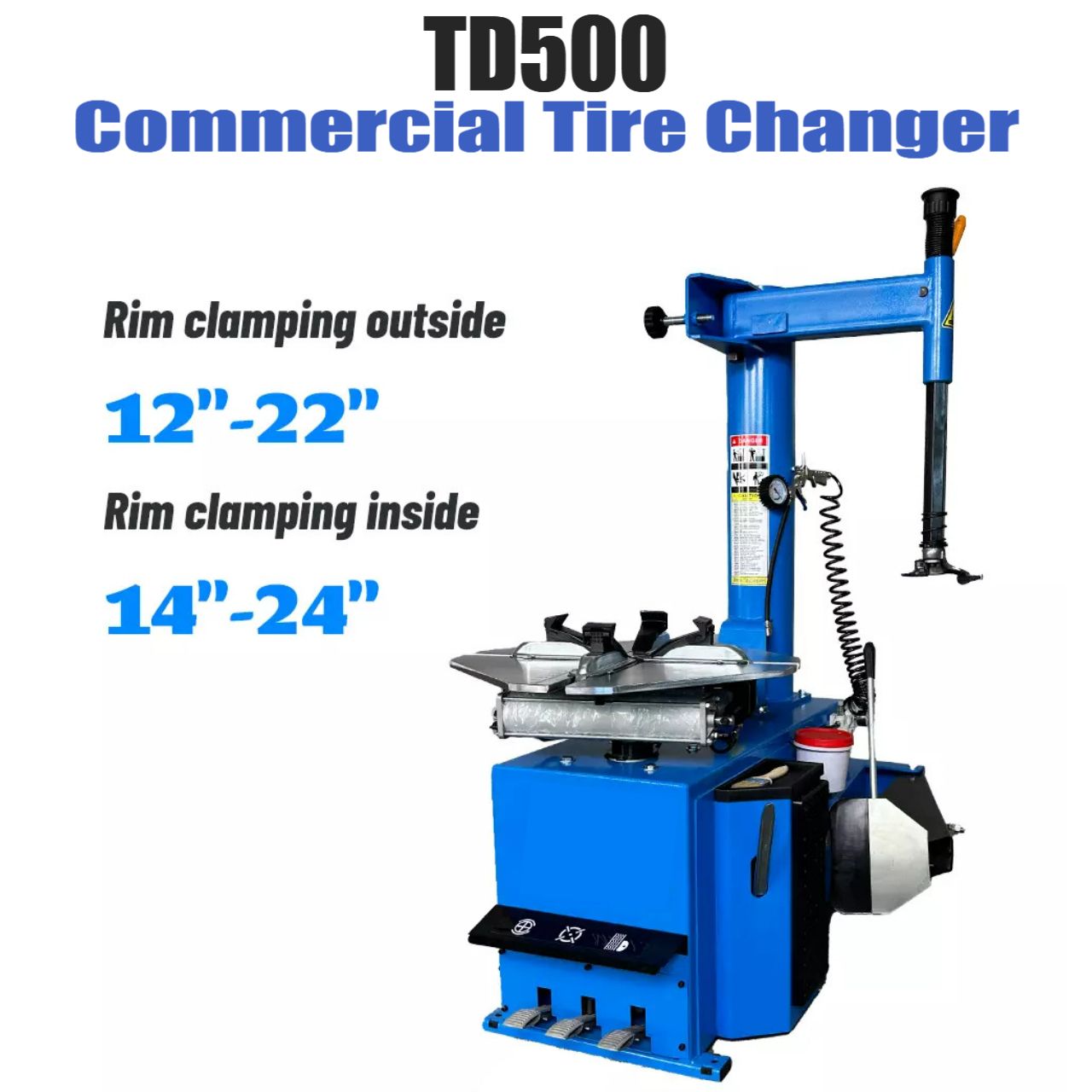

The TD500 Tire Changing Machine wheel clamp tire changer is the perfect wheel clamp tire changer for most general automotive service departments and medium sized tire stores.

This tire changer is perfect for changing the tires on large SUV and one ton trucks.

The TD500 wheel clamp tire changers are designed to change the tires on both high priced alloy wheels and steel wheels without damaging the rim or the tire.

The powerful ADUSTABLE bead breaker located on the side of the tire changer is designed to break even the most stubborn and rusted beads without damage to the rim.

The turntable jaws (which can be covered with the standard protective plastic inserts) hold the rim securely without damaging the surface of the rim.

These jaws can be moved to three different positions along the slides of the turntable to either increase or decrease the clamping range of the TD500 wheel clamp tire changer.

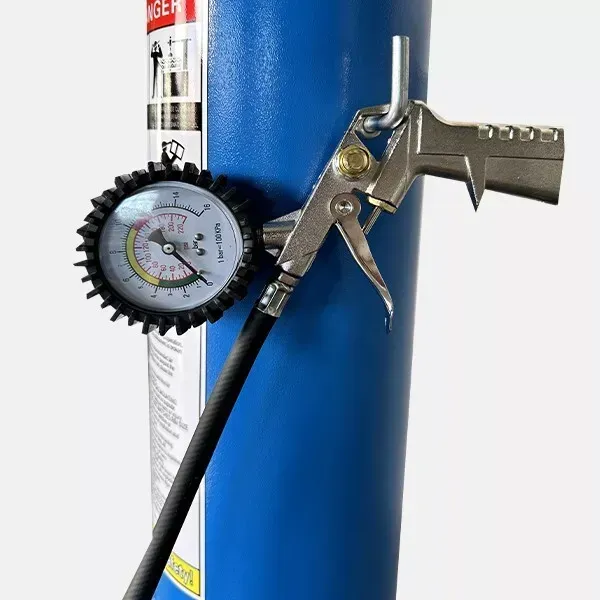

The TD500 wheel clamp tire changer comes standard with the powerful bead blast system and inflator hose adapter and pressure gauge.

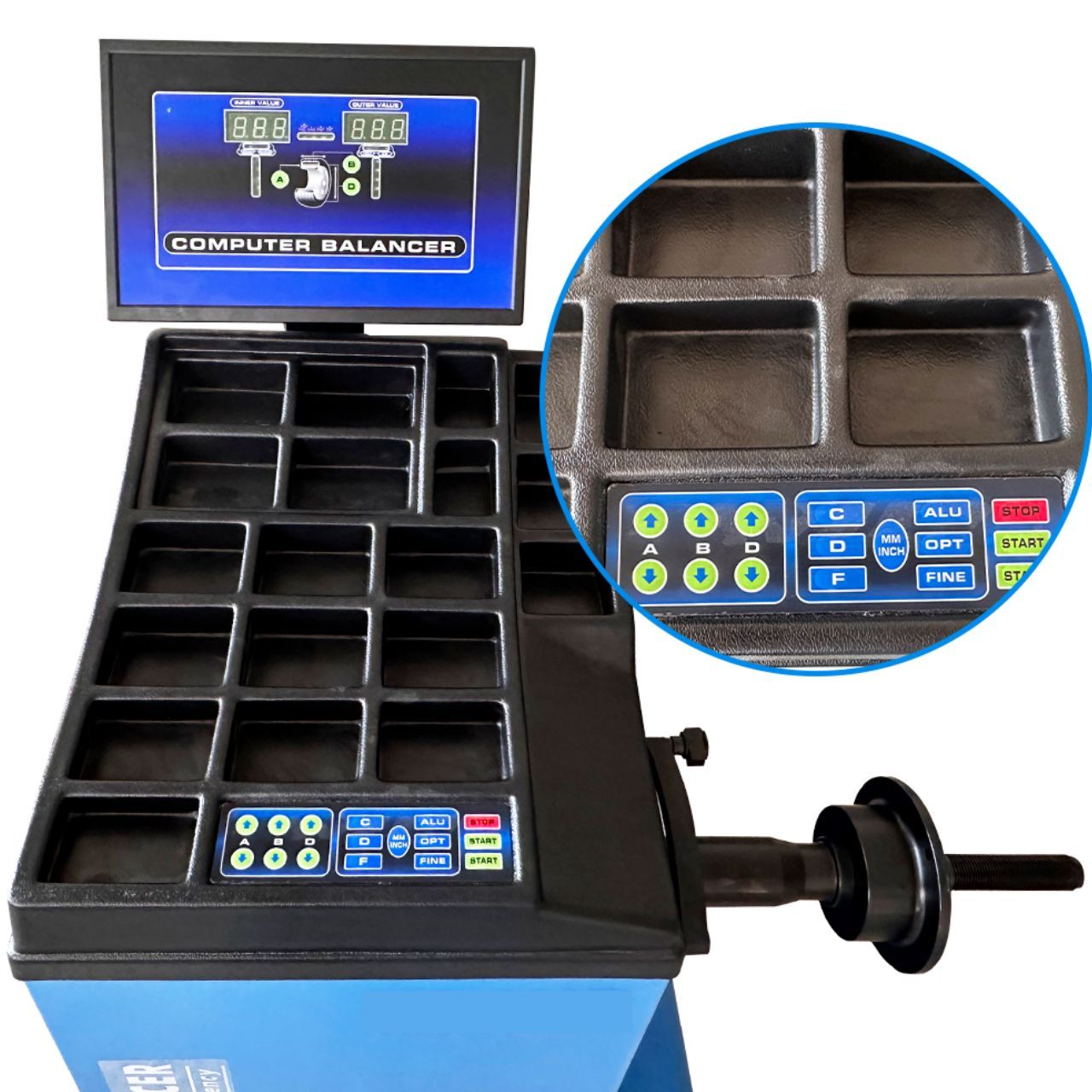

The TD500 High Performance Car Computer Wheel Balancers offer Wheel Balancing on a 36 mm Shaft up to 24 Inch Max. Rim Diameter and is Self-Calibrating.

A Closer Look:

TD500 Tire Changer Specs

Power Supply Voltage 110 V, 60 Hz, 1 Ph

Motor 1.5 HP ( 1.1 kW )

Working Pressure 116 PSI - 145 PSI ( 8 bar - 10 bar )

Bead Breaker Force Pneumatic 5500 lbs

Drive System Type Electric / Pneumatic

Table Clamping Dual Pneumatic Cylinders

Bead Breaking System Adjustable Pneumatic Blade

External Rim Clamping 12"-22"

Internal Rim Clamping 14"-24"

Max. Wheel Width 15"

Max. Wheel Diameter 41"

Turntable Rotating Torque 885 ft/lbs

Power Cord Length 78 47/64" ( 2000 mm )

Speed 7 RPM

12" ( 127 mm - 305 mm )

13" ( 38 mm - 330 mm )

Noise Level < 70 dB

Product Dimensions

L 43.3" x W 55.12" x H 76.18" ( 1100 mm x 1400 mm x 1935 mm )

Product Weight 416.67 lbs ( 189 kg )

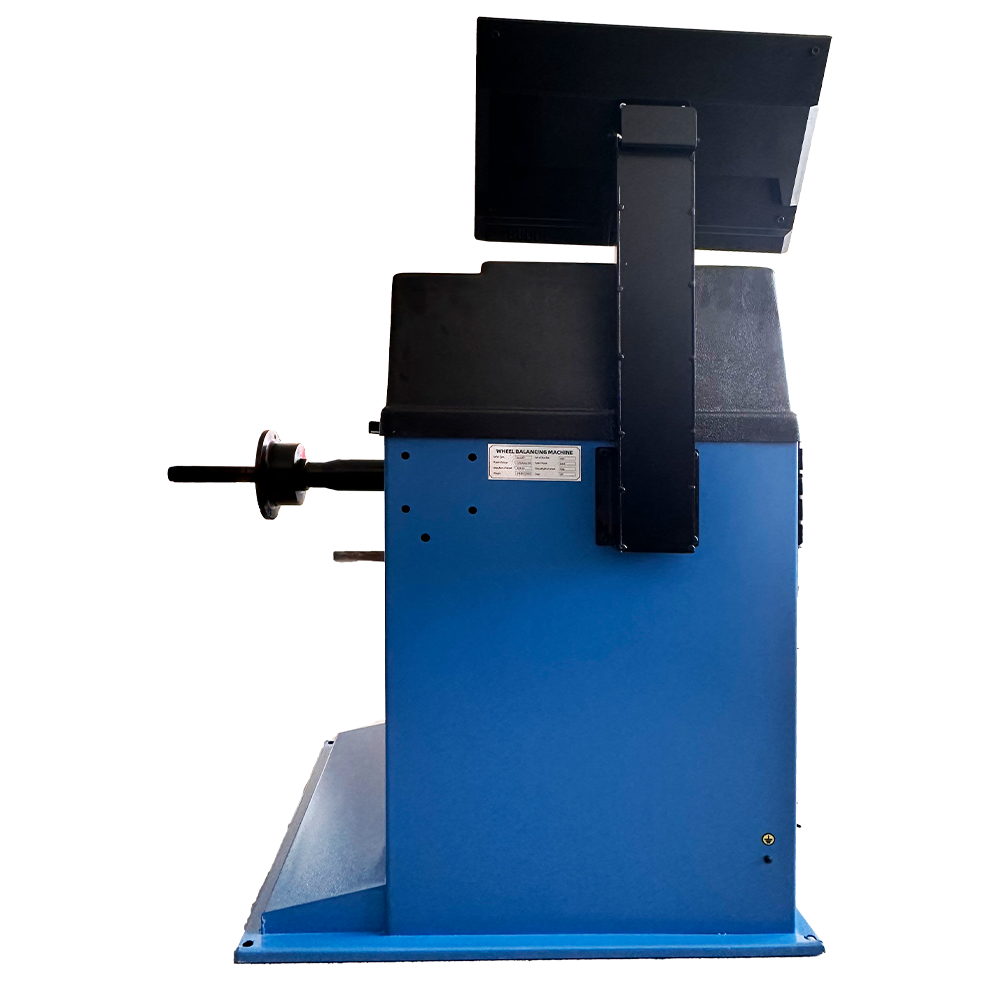

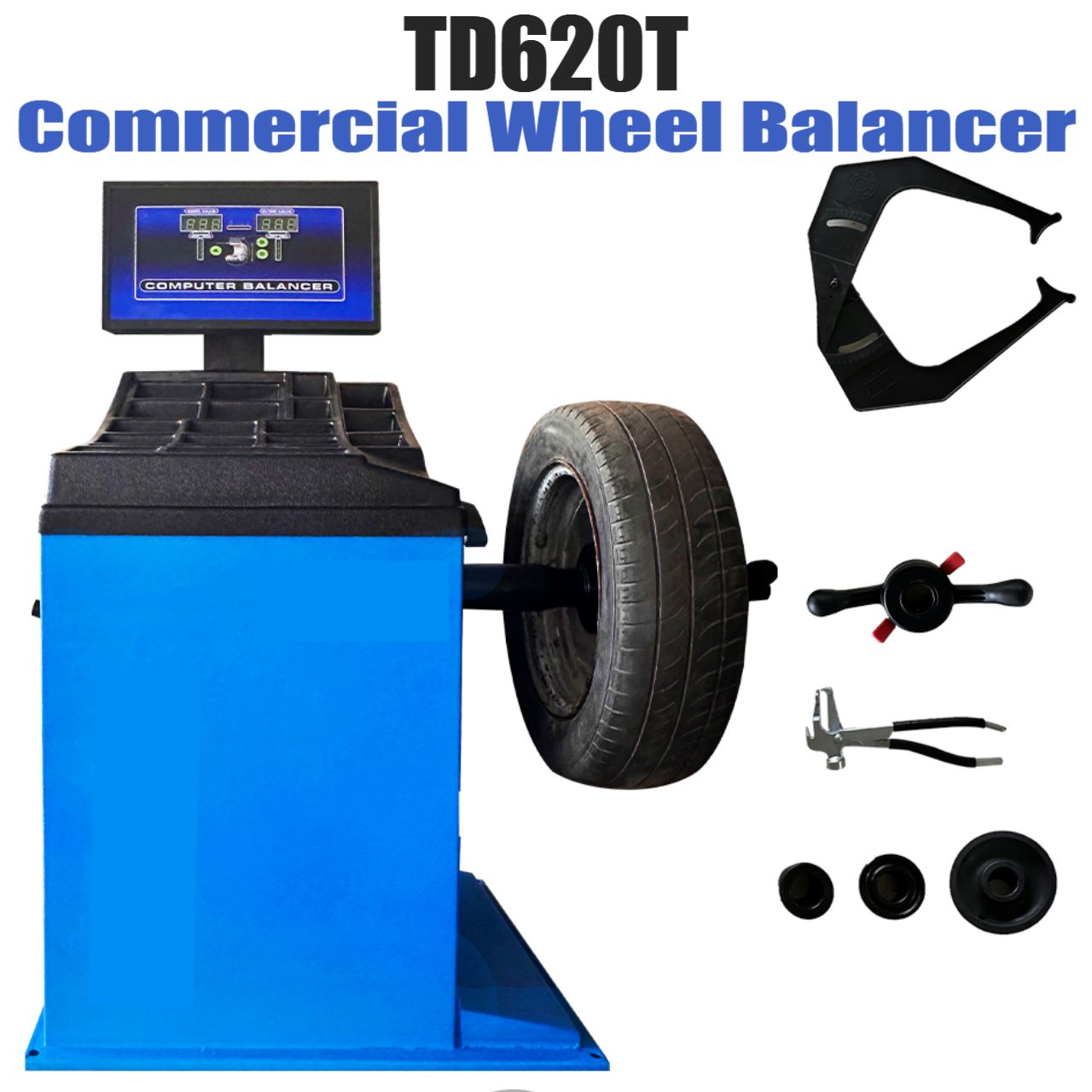

TD620T Wheel Balancer Specs

Power Supply Voltage 110 V, 60 Hz, 1 Ph

Motor 0.34 HP ( 0.25 kW )

Working Temperature 23 °F to 122 °F ( -5 °C to 50 °C )

Cycle Time 6 to 9 seconds

Data Entry Keypad

Balancing Modes Dynamic / Static / Alloy

Certification CE Approved

Rim Diameter Capacity 10" - 24" ( 254 mm - 610 mm )

Rim Width Capacity 1 1/2" - 16" ( 38 mm - 406 mm )

Max. Wheel Diameter 39 3/8" ( 1000 mm )

Max. Wheel Weight 154.32 lbs ( 70 kg )

Shaft Size 36 mm

Max. Shaft Weight 176.37 lbs ( 80 kg )

Balancing Speed 180 RPM

Accuracy 0.035 ounces ( 1 gram )

Display Standard or Metric

Self Calibration Yes

Power Cord Length 78 47/64" ( 2000 mm )

Noise Level < 70 dB

Product Dimensions L 44.09" x W 25.98" x H 39.76" ( 1120 mm x 660 mm x 1010 mm )

Product Weight 176.37 lbs ( 80 kg )

Machine Features:

1.Economical and practical type design.

2.Piston of spade cylinder is high density aluminum casting to prolong its service life.

3.The clamping jaw is made of precision steel cast which is firm and durable.

4.Optional motorcycle adapter.

5.Enhanced inner box structure can avoid mechanical deformation during working to prolong its service life.

6.Clamping jaw is equipped with a protective sleeve to provide more comprehensive protection for the tires and rims.

TD500 Tire Changing Machine Review & Rating

Overall Thoughts

The TD500 is really all you need to change those large, low profile tires with ease! The inside rim clamping will even accommodate an ultra large 24 inch rim!
